HALO Products
HALOFLEX System
Easier. Faster. Smarter.
Introducing the new HALOFLEX Energy Generator, a bipolar Radiofrequency (RF) Energy Generator designed to precisely control depth and uniformity of tissue ablation in the GI tract.
One Generator. Multiple Solutions.
Provides the flexibility to choose either the HALO360+ Ablation Catheter for larger circumferential treatment areas or the HALO90 Ablation Catheter for treatment of smaller focal areas.
Easier
- Seamless transition between circumferential and spot treatment cases.
- Intuitive sizing provides improved differentiation between the esophagus and stomach.
Faster
- Rapid firing for reduced procedure time:
Recovery in <2 seconds with HALO90 Catheters.
Smarter
- Automatically recommends ablation catheter sizing.
- Tracks and displays total number of ablations.
- Automatically adjusts default power density settings to match catheter.
- Platform for future clinical and product innovation.
|
HALO90 Ablation Catheter
HALO360+ Ablation Catheter |
HALOFLEX System Specifications

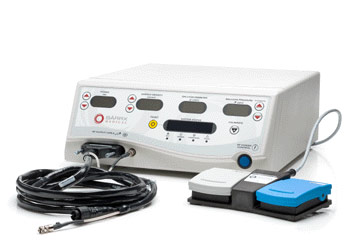

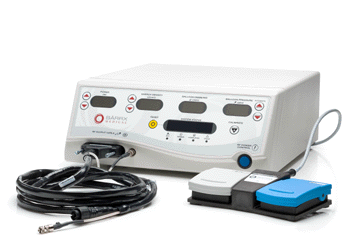

HALOFLEX ENERGY GENERATOR: 1190A-115A
The HALOFLEX Energy Generator offers "2 procedures in 1", providing the flexibility to choose either the balloon based circumferential HALO360+ Ablation Catheter for larger treatment areas or the HALO90 Ablation Catheters for smaller focal areas.
Accessories included with the HALOFLEX Energy Generator:
- HALOFLEX Footswitch: FLEXFS-010A
Footswitch for hands-free activation of ablative and pneumatic delivery system
- HALOFLEX Output Cable: 90-9010
Connection cable for the ablation catheter to the HALOFLEX energy generator
|
HALOFLEX ENERGY GENERATOR: 1190A-115A |
HALO CART: CART-100
Custom designed to accommodate HALO Energy Generators, HALO Sizing Balloons and Ablation Catheters, and accessories.
- Overall dimensions:
Height: 42.5"
Width: 22.5" (34" w/trays)
Depth: 23"
- Product storage capacity:
Quantity 18-HALO360+ Catheters
Quantity 12-HALO90 Ablation Catheters
or HALO Guidewires
- Net Weight: 100 lbs.
|
HALO CART: CART-100
*Catheters & accessories sold separately. |
Products for Use with the HALOFLEX System
HALO360+ Sizing Balloon: 3441C
Compatible with the HALOFLEX and HALO360 Energy Generators for automated sizing.

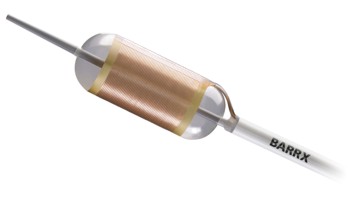

HALO360+ Ablation Catheter
Proprietary bipolar electrode array delivers precise circumferential radiofrequency energy to the targeted tissue area.
Available Diameter Sizes:
- 18 mm: 32041-18
- 22 mm: 32041-22
- 25 mm: 32041-25
- 28 mm: 32041-28
- 31 mm: 32041-31
HALO90 Ablation Catheter: 90-9100
Proprietary RF bipolar electrode array delivers energy to targeted smaller areas of tissue.
HALO90 Ablation Catheter (90-9100) and HALO90 ULTRA Ablation Catheter (90-9200)
Proprietary RF bipolar electrode array delivers energy to targeted small and intermediate areas of tissue.
* Patents: 6,551,310; 6,872,206; 7,150,745; 7,344,535; and other patents pending
